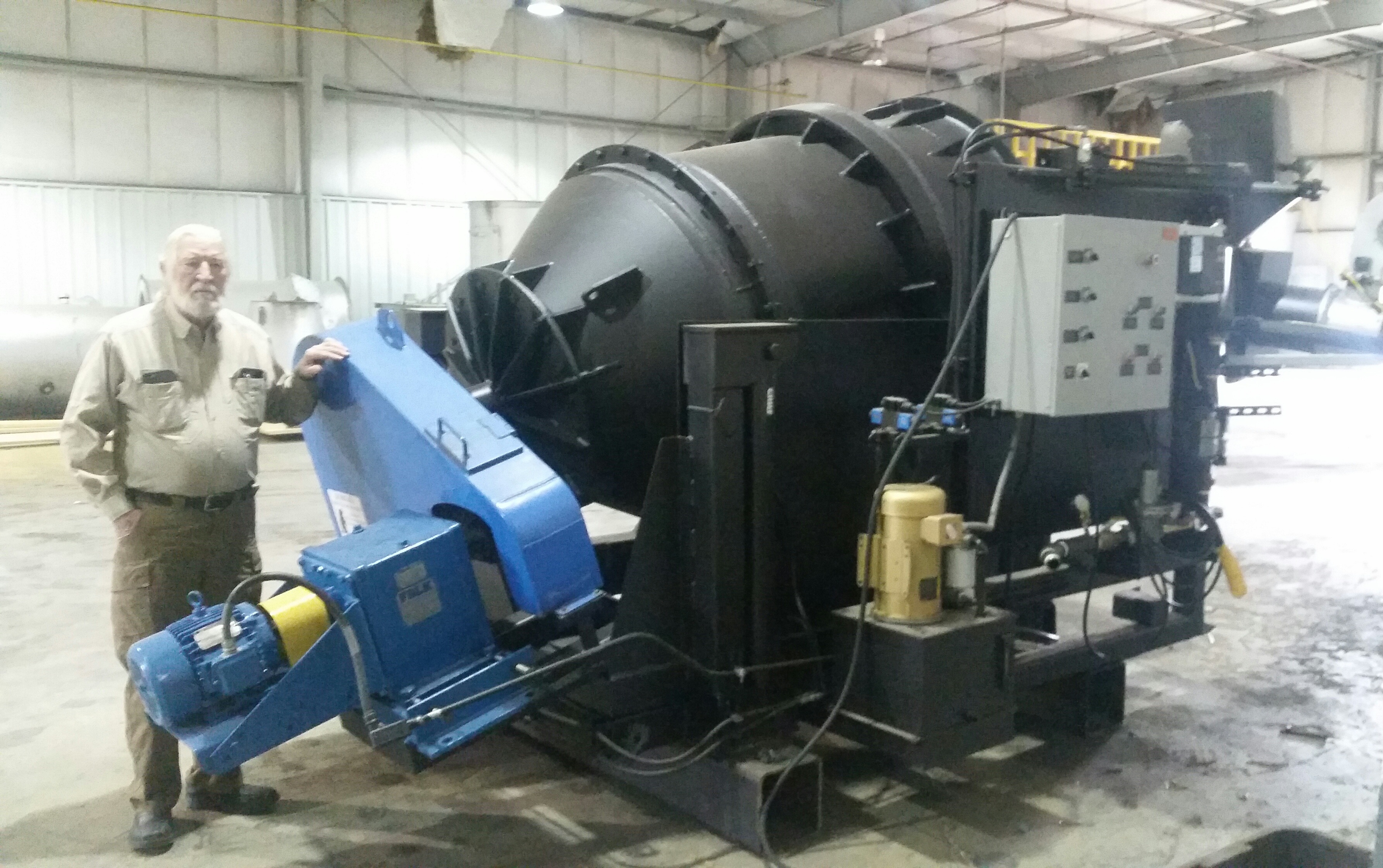

"Little Girl" Unit. No. 15 Package Rotary Furnace
Current Specifications:
(can be changed to meet Customer Requirements)
Capacity: 15 cubic
ft. Molten Metal Capcity
Refractory: Unit will have New Refractory installed
to meet customer requirements
Burner: Currently has a 2.5M BTU Hauck Burner- Air/Natural Gas
Burner control is variable, turns down 10:1
Mounted in hydraulic tilt-out door
Door Opening: 36". Flow resistence ring around door opening.
Furnace Steel Shell: 1/4" thick
Furnace has a three point suspension and is supported
by two trunnion wheels on steel tyre in front, pillow
block bearing at rear, no thrust rollers to contend with
Drive HP: 5 HP variable thru gearbox/sprocket/chain
Rotation Speed: 1-6 RPM infinitely variable thru Rheostat
Manual Control
Hydraulic Tilt Cylinders:
Heavy Duty Mill Type
Tilt Speed: 1 degree per second, with check valves to
hold-Emergency Down
Hydraulic Power
Unit: 5 HP, 5 GPM min.
Control Panel: Pre-Wired to operate all functions
Fabricated steel
Hood: Custom made steel hood Over front of Rotary to
catch and direct
smoke
and fumes, with duct connections
See
Articles On Our Patented "SuperMelt"
Rotary with SWIVEL
Base
Contact
Us for Additional
Information
